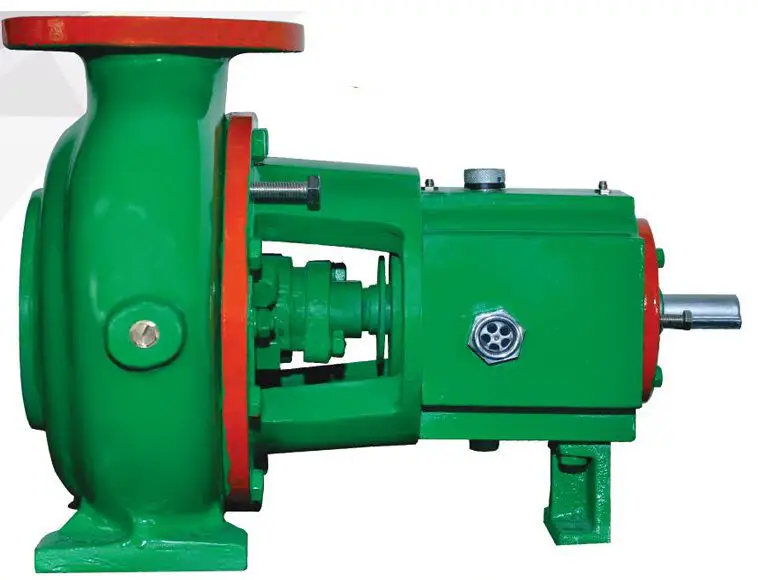

ABIRAMI PROCESS PUMP TYPE: APC- JT
process type apc-jt pump
Types Of Impeller
semi open impeller for ace pump-Pulp pump impeller

TYPE OF SEALING

Gland packing to with stand high temperature. Also Available with Mechanical seal of special cartridge type

LUBRICATION :

Special Synthetic grade oil suitable for high temperature operation

DESIGN

Chemical process pump with Jacketed casing for high temperature Application. Casing and stuffing box are jacketed with triple bearing design.

APPLICATION

Fertilizer, solidifying liquids to sustain the temperature of pumping liquid by giving steam circulation in the out side casing & stuffing box.

OPERATING RANGE

Capacity up to 800 m³/hr.
Head in Mts. up to 160 Meters
Temperature up to 240°C
Working pressure up to 25kg /cm²
Speed in RPM 3600 Max.
Material execution chart for all pumps
