In Accordance with DIN / API

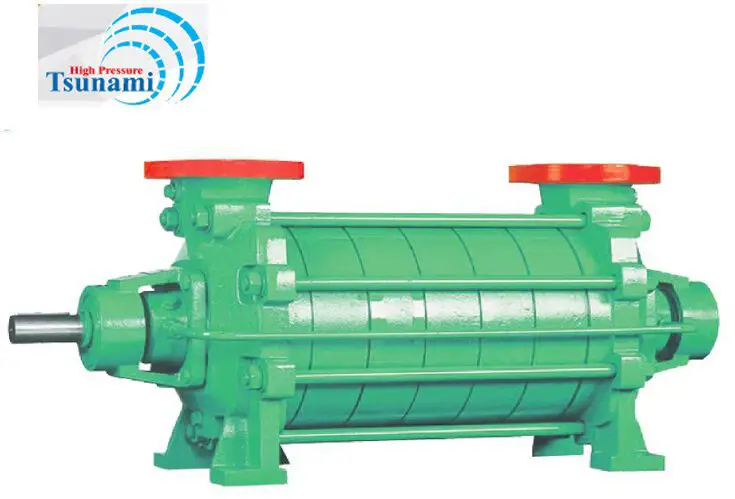

ABIRAMI HIGH PRESSURE PUMP TYPE : AHP
Types Of Impeller

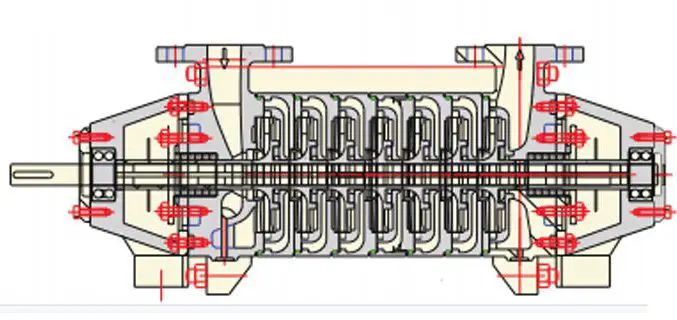

SECTIONAL VIEW OF AHP
DESIGN
Horizontal, Centrifugal, Multi Stage, Single Entry, Barrel type with closed impeller construction with two row self aligning ball bearing on non-drive end & single row bearing on drive end.
APPLICATION
High pressure, water spray, boiler feed pump, sprinkler irrigation, shower cleaning, sealing water.
OPERATING RANGE
| Capacity | up 100 m³/hr. |
| Head in Mts | up to 400 Meters |
| Temperature | up to 120°C |
| Working pressure | up to 40kg /cm² |
| Speed in RPM | 3000 Max. |
