In Accordance with ISO 2858 / DIN 24256
ABIRAMI PROCESS PUMP TYPE: APP, APC, APN, APC-MV, APV

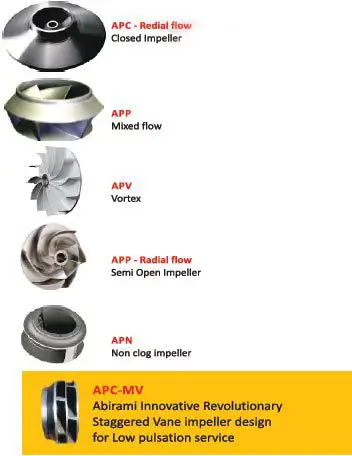

Types Of Impeller
100 Models in type APP ensures the pump selection of any duty parameter within the operating range nearest to the best efficiency point.
DESIGN
Horizontal, Centrifugal, Single stage, Single entry, Radial split volute casing, Radial flow impellers semi –open / open type in accordance with DIN standard.
APPLICATION
App type pumps are especially designed to handle pulp stock up to 7% with wide volute to take the pulp as like water.
PAPER INDUSTRY: APP type pumps are especially designed to handle pulp stock up to 7% without applying correction factor for head & efficiency.
ASBESTOS INDUSTRIES: APP and APC type pumps are designed to handle asbestors slurry, cement slurry, ash slurry, back water, booster, fiber cone, water, waste dissolver etc.
FERTILIZER INDUSTRY: For acids HCl, H₂So4, ammonia, other acids and petrochemical
OPERATING RANGE
| Capacity | up 7000 to 8000 m³/hr. |
| Head in Mts. | up to 150 Meters |
| Temperature | up to 240°C |
| Working pressure | up to 16kg /cm² |
| Speed in RPM | 3000 Max. |
| SLURRY APPLICATION | All type of cement, fly ash, filter cement, backwater services |
COMMON CONSTRUCTIONAL FEATURES OF APP/ APO/ AEC-PML/ AEC-C PUMPS

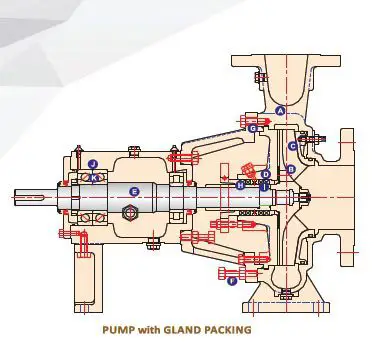

Sectional View of APP
A. VOLUTE CASING
Self venting casting prevents air lock with low radical force.
B. IMPELLER
Closed, Semi Open, Open, Non clog, Vortex & Closed type staggered multi vane impellers to cover all application industry.
Back vane relives pressure on Stuffing box & reduces leakages.
Balancing holes are provided to reduce axial trust.
C. RENEWABLE WEAR PLATE
Fitter with casing parallel to impeller profile to ensure the impeller clearance and to achieve the designed effiency of the pump. This also protects the liquid contact the wear plate seating area of the casting.
J. BEARING HOUSING
Sturdy bearing unit design. Non floating rotor both oil & grease can be used as lubricant. Since most of the pump models are coming under same bearing unit only few spares need to be kept for maintenance
K. BEARINGS
Heavy duty angular contact ball bearings in drive end 2 nos. & 1 no. cylindrical roller/ deep groove ball bearing in the non drive end. Suitable for grease & oil lubrication.
Also available with extra heavy duty design for special applications.
Abirami Pumps is among the Greatest Centrifugal Pumps manufacturer and suppliers in Coimbatore, India. We manufacture and supply excellent Centrifugal Pumps like horizontal multistage pumps as well as vertical multistage pumps. The no.1 industrial pump manufacturers in India, have supplied high-quality process pumps for a variety of industries in India
BEARING ASSEMBLY DESIGN OF APP PUMPS
Sectional View of APP
